CLUTCH DRUM COMPONENT AND F4 ONE-WAY CLUTCH COMPONENT DISASSEMBLY
id051300260600
Components
bsj6za00000539
|
|
1
|
F4 one-way clutch
|
|
2
|
Thrust washer
|
|
3
|
Clutch hub
|
|
5
|
Bearing race
|
|
6
|
Snap ring
|
|
7
|
Retaining plate
|
|
8
|
Drive plate
|
|
9
|
Driven plate
|
|
10
|
Snap ring
|
|
11
|
Retaining plate
|
|
12
|
Drive plates component
|
|
13
|
Driven plate
|
|
14
|
Snap ring
|
|
15
|
C1 clutch seal plate
|
|
16
|
D-ring
|
|
17
|
Piston return spring
|
|
18
|
C4 clutch piston
|
|
19
|
C1 clutch piston
|
|
20
|
O-ring
|
|
21
|
Input shaft component
|
|
22
|
Seal ring
|
|
23
|
Bearing race
|
|
24
|
Snap ring
|
bsj6za00000620
|
|
1
|
Snap ring
|
|
2
|
Sleeve
|
|
3
|
Driven plate
|
|
4
|
Retaining plate
|
|
5
|
Drive plate
|
|
6
|
Driven plate
|
|
7
|
Clutch hub component
|
|
8
|
Thrust needle bearing
|
|
9
|
Retaining plate
|
|
10
|
Clutch hub
|
|
11
|
Thrust washer
|
|
12
|
Thrust bearing
|
|
13
|
Bearing race
|
|
14
|
Snap ring
|
|
15
|
Snap ring
|
|
16
|
Retaining plate
|
|
17
|
Drive plate
|
|
18
|
Driven plate
|
|
19
|
Snap ring
|
|
20
|
C2 clutch seal plate
|
|
21
|
O-ring
|
|
22
|
C2 clutch piston return spring
|
|
23
|
C2 clutch piston
|
|
24
|
O-ring
|
|
25
|
C2, C3 clutch drum
|
|
26
|
O-ring
|
|
27
|
C3 clutch piston component
|
|
28
|
O-ring
|
|
29
|
Piston return spring
|
|
30
|
C3 clutch seal plate
|
|
31
|
Snap ring
|
Disassembly Procedure
1. Using a flathead screwdriver, remove the snap ring from the C3 clutch piston component.
bsj6za00000260
|
2. Remove the clutch hub component from the C3 clutch piston component.
3. Remove the retaining plate and the drive plate and the driven plate from the clutch hub component.
bsj6za00000821
|
4. Remove the retaining plate from the C3 clutch piston component.
bsj6za00000262
|
5. Remove the thrust needle bearing from the clutch hub.
bsj6za00000211
|
6. Remove the clutch hub from the C3 clutch piston component.
bsj6za00000822
|

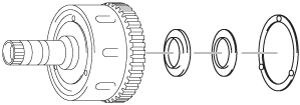

7. Remove the thrust bearing, the bearing race and the thrust washer from clutch hub.
bsj6za00000264
|

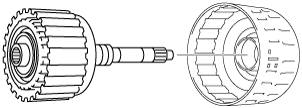

8. Remove the C1, C4 clutch component from the C2, C3 clutch drum.
bsj6za00000665
|
9. Remove the bearing race from the C3 clutch piston component.
bsj6za00000305
|
10. Remove the clutch hub and F4 one-way clutch from the C1, C4 clutch component.
bsj6za00000823
|
11. Remove the bearing race from the C1, C4 clutch component.
bsj6za00000307
|
12. Remove the F4 one-way clutch from the clutch hub.
bsj6za00000308
|
13. Using a flathead screwdriver, remove the snap ring from the input shaft component.
bsj6za00000144
|
14. Remove the retaining plate (C1) and the drive plate (C1) and the driven plate (C1) from the input shaft component.
bsj6za00000666
|
15. Using a flathead screwdriver, remove the snap ring from the input shaft component.
bsj6za00000146
|
16. Remove the retaining plate (C4) and the drive plate (C4) and the driven plate (C4) from the input shaft component.
bsj6za00000667
|
17. Place the SST on the seal plate and compress the piston return spring with a press.
bsj6za00000871
|
18. Remove the snap ring using snap ring pliers.
19. Remove the C4 clutch seal plate and the piston return spring from the input shaft component.
bsj6za00000554
|

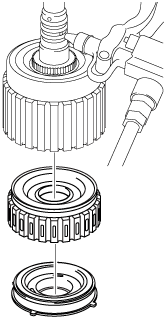

20. Apply compressed air into the oil passage as shown in the figure and remove the C4 clutch piston and C1 clutch piston from the input shaft component.
bsj6za00000564
|
21. When applying compressed air, shut the oil passages of the input shaft component.
22. Remove the O-ring from the input shaft component.
bsj6za00000565
|
23. Remove the D-ring from the C1 clutch seal plate.
bsj6za00000555
|
24. Remove the seal ring from the input shaft component.
bsj6za00000153
|
25. Using a flathead screwdriver, remove the snap ring (C3) from the C2, C3 clutch drum.
bsj6za00000154
|
26. Using a flathead screwdriver, remove the snap ring (C2) from the C2, C3 clutch drum.
bsj6za00000155
|
27. Remove the retaining plate (C2) and the drive plate (C2) and the driven plate (C2) from the input shaft component.
bsj6za00000669
|
28. Install the SST as shown in the figure, and compress the C2 clutch piston return spring.
bsj6za00000888
|
29. Remove the snap ring using snap ring pliers.
bsj6za00000787
|
30. Remove the seal plate and the C2 clutch piston return spring from the C3 clutch drum.
bsj6za00000557
|
31. Apply compressed air into the oil passage as shown in the figure and remove the C2 clutch piston and C3 clutch piston from the input shaft component.
bsj6za00000558
|
32. When applying compressed air, shut the oil passage of the input shaft component.
33. Remove the O-ring from the C2 clutch seal plate.
bsj6za00000297
|
34. Remove the O-ring from the C2 clutch piston.
bsj6za00000298
|
35. Install the SST using a M10-1.25 bolt with a length of 100 mm as shown in the figure to compress the piston return spring.
bsj6za00000791
|
36. Remove the snap ring using snap ring pliers.
bsj6za00000789
|
37. Remove the seal plate piston return spring from the C3 clutch piston component.
bsj6za00000300
|
38. Remove the C2, C3 clutch drum C3 clutch piston component.
bsj6za00000301
|
39. Remove the O-ring from the C3 clutch piston component.
bsj6za00000302
|
40. Remove the O-ring from the C2, C3 clutch drum.
bsj6za00000303
|
