DRIVE BELT CONSTRUCTION [L8, LF]

id0110a9102500

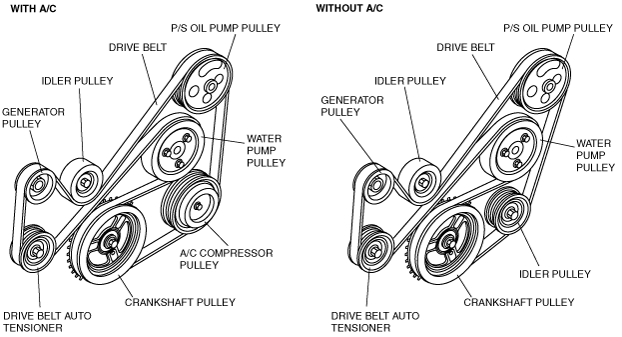

•  The single, serpentine type drive belt drives auxiliary parts, resulting in a shortened overall engine length and improved serviceability.
•  A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain the optimal drive belt tension.

Drive Belt Specification.

item

Specification

L8, LF
Belt length
mm {in}
About 2,243 {88.31}
(About 2,163 {85.16})*
Belt width
mm {in}
About 20.5 {0.81}

*  : A/C non-equipping vehicle specification.
amxzzn00000473
