CRANKSHAFT SPROCKET CONSTRUCTION [L8, LF]

id0110a9120400

• High-strength chromium steel has been adopted for the crankshaft sprocket. Due to carbonizing protection, abrasion resistance at all chain contact points is increased.

• The crankshaft sprocket consists of the timing chain sprocket and oil pump sprocket, which are integrated into a single unit.

• The keyway on the crankshaft sprocket, used to position the crankshaft during installation, has been eliminated.

Timing Drive Sprocket Specification.

item	Specification
item	L8, LF
Outer diameter (mm {in})	About 47.955 {1.8880}
Tooth width (mm {in})	About 7.35 {0.289}

Oil Pump Drive Sprocket Specification.

item	Specification
item	L8, LF
Outer diameter (mm {in})	About 47.955 {1.8880}
Tooth width (mm {in})	About 6.15 {0.242}

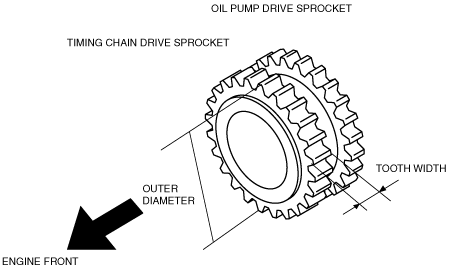

amxzzn00000476
