DRIVE BELT INSPECTION [L8, LF]

id0110a9801500

Note

•  Drive belt deflection/tension inspection is not necessary because of the use of the auto tensioner.

1.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

Note

•  Use a mirror to see the position of the drive belt auto tensioner indicator mark.

e5u110zw5021

2.  Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

•  If it exceeds the limit, replace the drive belt. (See DRIVE BELT REPLACEMENT [L8, LF].)

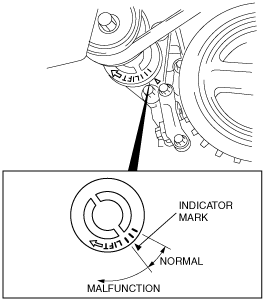

AT

e5u110zw5020

MT

e5u110zw5001

3.  Install the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
