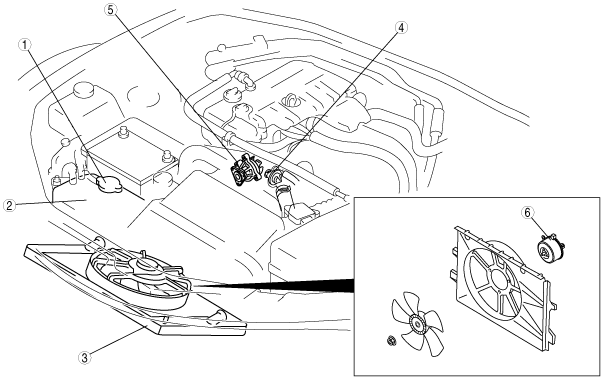

COOLING SYSTEM LOCATION INDEX [L8, LF]

id0112b4800100

amxzzw00001958

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [L8, LF].)
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [L8, LF].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [L8, LF].)
3	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [L8, LF].) (See ENGINE COOLANT REPLACEMENT [L8, LF].) (See ENGINE COOLANT LEAKAGE INSPECTION [L8, LF].) (See RADIATOR REMOVAL/INSTALLATION [L8, LF].)
4	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [L8, LF].) (See THERMOSTAT INSPECTION [L8, LF].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [L8, LF].)
6	Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [L8, LF].) (See COOLING FAN MOTOR INSPECTION [L8, LF].)
