FUEL SYSTEM LOCATION INDEX [L8, LF]

id0114a3800100

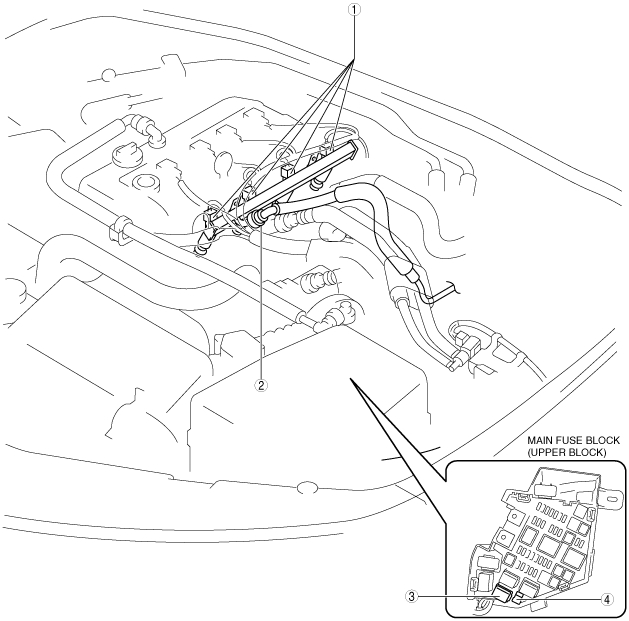

Engine Compartment Side

amxzzw00000815

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [L8, LF].) (See FUEL INJECTOR INSPECTION [L8, LF].)
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [L8, LF].)
3	Fuel pump relay
4	Check connector

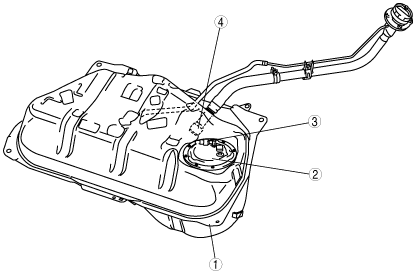

Fuel Tank Side

amxzzw00000816

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [L8, LF].) (See FUEL TANK INSPECTION [L8, LF].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [L8, LF].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [L8, LF].) (See FUEL PUMP UNIT INSPECTION [L8, LF].)
3	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [L8, LF].)
4	Nonreturn valve (See NONRETURN VALVE INSPECTION [L8, LF].)
