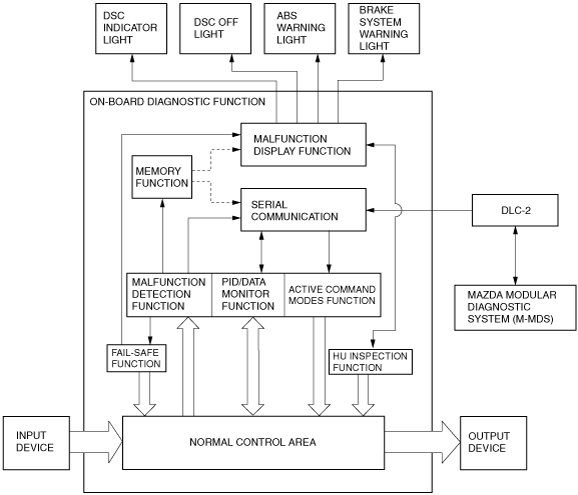

•  The on-board diagnostic system consists of a malfunction detection system that detects malfunctions in input/output signals when the ignition is switched to ON, a PID/data monitor function that reads out specified input/output signals, and a active command modes function that allows for override operation of output parts (such as solenoid valves).

•  The data link connector 2 (DLC-2), which groups together all the connectors used for malfunction diagnosis and detecting/repair into a single location, has been adopted, thereby improving serviceability.Diagnosis is performed by connecting the Mazda modular diagnostic system (M-MDS) to the DLC-2.

•  In addition to DTC read-out, the Mazda modular diagnostic system (M-MDS) is used to clear DTCs using the display screen of the diagnostic tester, and to access the PID/data monitor and active command modes functions, providing enhanced malfunction diagnosis and improved serviceability.
