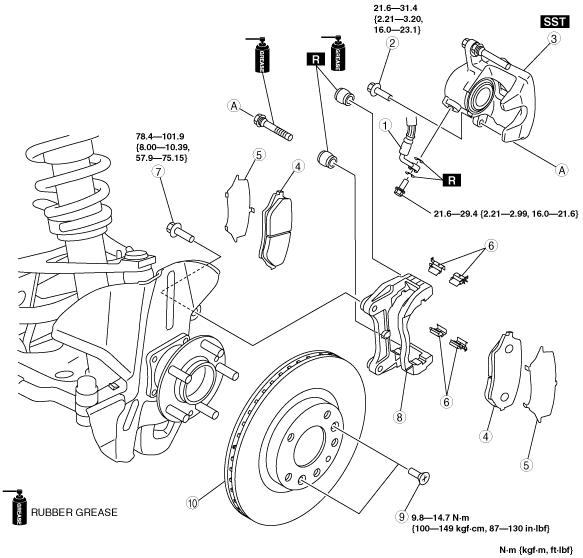

FRONT BRAKE (DISC) REMOVAL/INSTALLATION
id041100800900
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.
amxzzw00002532
|
|
1
|
Brake hose
|
|
2
|
Bolt
|
|
3
|
Caliper
(See Caliper Installation Note.)
|
|
4
|
Disc pad
|
|
5
|
Shim
|
|
6
|
Guide plate
|
|
7
|
Bolt
|
|
8
|
Mounting support
|
|
9
|
Screw
|
|
10
|
Disc plate
|
Caliper Installation Note
1. Clean the exposed area of the piston.
2. Install the piston using the SST.
amxzzw00002229
|
3. Install the caliper.
