FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041300800700

1.  Remove the mudguard.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

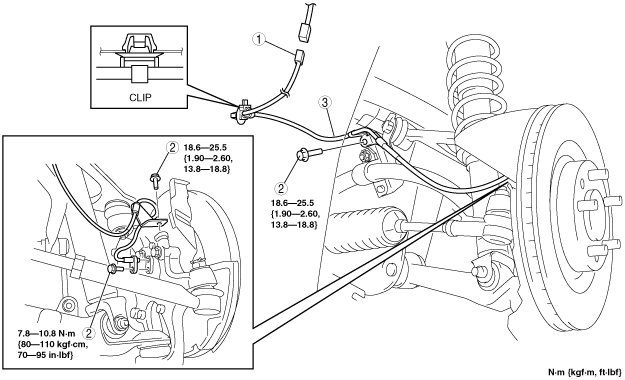

amxzzw00000256

1	Connector
2	Bolt
3	Front ABS wheel-speed sensor
