TCM REMOVAL/INSTALLATION [SJ6A-EL]
id051311250800
1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
L.H.D.
amxzzw00000220
|
|
1
|
TCM connector
|
|
2
|
Nut
|
|
3
|
Nut
|
|
4
|
Bracket
|
|
5
|
TCM
|

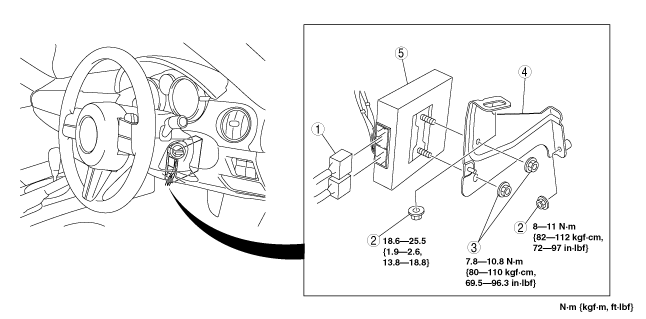

R.H.D.
amxzzw00000221
|
|
1
|
TCM connector
|
|
2
|
Nut
|
|
3
|
Nut
|
|
4
|
Bracket
|
|
5
|
TCM
|
