CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1807700

1.  Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminal.

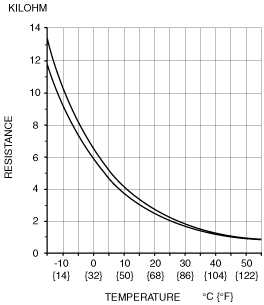

•  If the characteristics of the cabin temperature sensor are not as shown in the graph, replace the cabin temperature sensor.

amxzzw00000696
