CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1807800

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

L.H.D.

amxzzw00000697

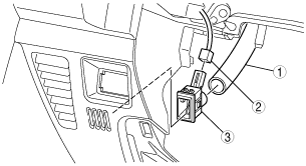

R.H.D.

amxzzw00000698

1	Air hose
2	Cabin temperature sensor connector
3	Cabin temperature sensor

5.  Install in the reverse order of removal.
