REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER]

id0740a2802700

1.  Connect the manifold gauge.

2.  Verify the high-pressure side reading.

3.  Disconnect the refrigerant pressure switch connector.

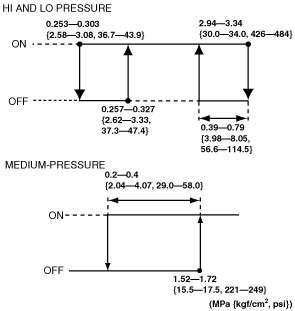

4.  Verify continuity between the terminals of the refrigerant pressure switch.

•  If the continuity is not normal, replace the refrigerant pressure switch.

e5u711zw5a09

amxzzw00001139
