AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

id0740a2803300

1.  Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminal.

amxzzw00000695

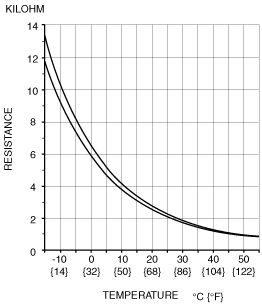

•  If the characteristics of the ambient temperature sensor are not as shown in the graph, replace the ambient temperature sensor.
