PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR REMOVAL/INSTALLATION

id081000800400

1.  Turn the ignition switch to the LOCK position.

2.  Remove the battery cover.

3.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4.  Remove the following parts:

(1)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

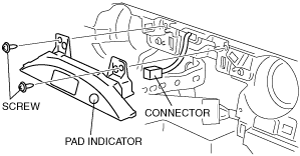

5.  Remove the screws.

amxzzw00001782

6.  Disconnect the connector.

7.  Remove the passenger air bag deactivation (PAD) indicator.

8.  Install in the reverse order of removal.
