ACTIVE BONNET SENSOR CONSTRUCTION/OPERATION


id081300001900

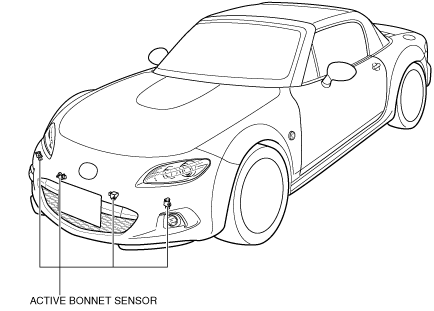

Construction

•  A crash sensor is integrated into each active bonnet sensor.
•  Four active bonnet sensors are equipped such that a collision can be detected in a wide range at the front of the vehicle.
•  The active bonnet sensors are installed to the backside of the front bumper.
amxzzn00000701

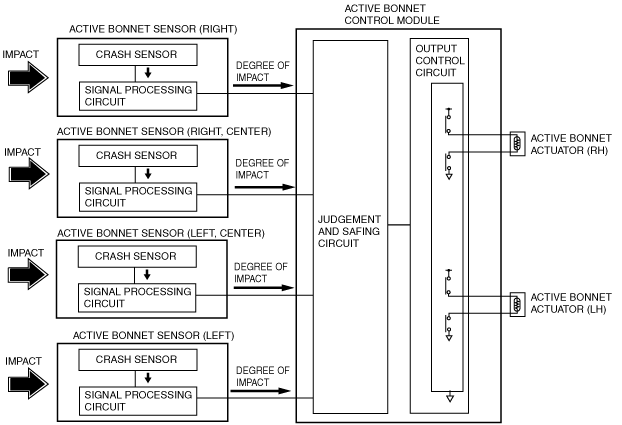

Operation

1.  If the vehicle receives and impact to the front, the impact is transmitted to the active bonnet sensors.

2.  The crash sensor built into the active bonnet sensor detects the impact and converts the impact into an electrical signal at the signal processing circuit.

3.  The active bonnet sensor sends a signal indicating the degree of impact, which is converted to an electrical signal, to the active bonnet control module.

amxzzn00000702
