DTC B296D [POWER RETRACTABLE HARDTOP]
id0902j2031700
|
DTC B296D |
Hall sensor low power supply voltage |
|---|---|
|
DETECTION CONDITION
|
• Power supply voltage to the Hall sensor is 5 V or less.
|
|
POSSIBLE CAUSE
|
• Battery malfunction
• Open or short circuit in wiring harness between power retractable hardtop control module and roof/deck panel motor
• Power retractable hardtop control module malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT THE BATTERY
• Measure the battery positive voltage.
• Is the measured voltage 7.5 V or more?
|
Yes
|
Go to the next step.
|
|
No
|
The battery has a malfunction.
Inspect the charge/discharge system.
|
||
|
2
|
INSPECT THE WIRING HARNESS BETWEEN POWER RETRACTABLE HARDTOP CONTROL MODULE AND ROOF/DECK PANEL MOTOR
• Turn the ignition switch to the LOCK position.
• Disconnect the negative battery cable.
• Disconnect the power retractable hardtop control module and roof/deck panel motor connector.

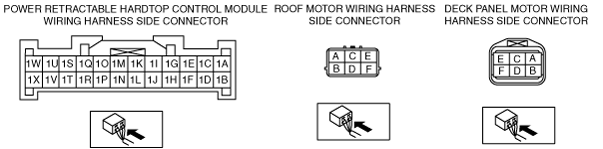

• Inspect for continuity between power retractable hardtop control module connector terminal 1G and following terminals:
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness.
|
||
|
3
|
INSPECT THE POWER RETRACTABLE HARDTOP CONTROL MODULE
• Connect the negative battery cable.
• Turn the ignition switch to the ON position.
• Push the power retractable hardtop switch.
• Measure the power retractable hardtop control module connector terminal 1G voltage.
• Is the measured voltage 5.0 V or more?
|
Yes
|
DTC troubleshooting completed.
|
|
No
|
Replace the power retractable hardtop control module.
|
||
