BONNET ADJUSTMENT

id091000407300


Gap Adjustment

1.  Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)
(2)  Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(3)  Side step molding (SeeSIDE STEP MOLDING REMOVAL.)
(4)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

3.  Loosen the bonnet hinge installation bolts and adjust the bonnet.

e5u910zw1003

4.  Tighten the bolts. (See BONNET REMOVAL/INSTALLATION)

5.  Verify that the gap between the bonnet and the body is within the specification.

amxzzw00000591

Standard clearance
a: 3.6—6.6 mm {0.15—0.25 in}
b: 3.0—5.0 mm {0.12—0.19 in}

6.  Install the following parts:

(1)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
(2)  Side step molding (SeeSIDE STEP MOLDING INSTALLATION.)
(3)  Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(4)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)


Height Difference Adjustment

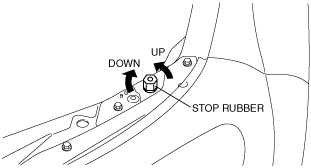

1.  Turn the stop rubber to adjust the height of the bonnet.

e5u910zw1005

2.  Verify that the height difference between the bonnet and the body is within the specification.

amxzzw00000592

Standard clearance
a: –1.0—2.0 mm {–0.04—0.07 in}
b: –0.5—1.5 mm {–0.02—0.05 in}
