SEAT BACK TRIM REMOVAL/INSTALLATION
id091300987100
L.H.D.
1. Turn the ignition switch to LOCK position.
2. Remove the battery cover.
3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
4. Remove the screw, then remove the belt guide.
amxzzw00001603
|
5. Slide hook A in the direction of arrow (1), (2), (3) shown in the figure to detach it from hook B.
amxzzw00001597
|
6. Open the fastener.
amxzzw00001598
|
7. Remove ring C, then remove the holder bracket C in the direction of arrow.
amxzzw00001599
|
8. Pull out part A shown in the figure to the front.
amxzzw00001600
|
9. Disconnect the seat warmer connector.
10. Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of arrow.
amxzzw00001601
|

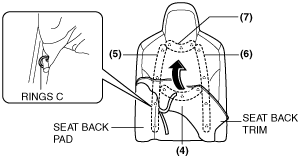

11. Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (4), (5), (6) and (7) shown in the figure, then remove the seat back trim.
amxzzw00002175
|
12. Install in the reverse order of removal.
R.H.D.
1. Turn the ignition switch to LOCK position.
2. Remove the battery cover.
3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
4. Remove the screw, then remove the belt guide.
amxzzw00001596
|
5. Slide hook A in the direction of arrow (1), (2), (3) shown in the figure to detach it from hook B.
amxzzw00001604
|
6. Open the fastener.
amxzzw00001605
|
7. Remove ring C, then remove the holder bracket C in the direction of arrow.
amxzzw00001606
|
8. Pull out part A shown in the figure to the front.
amxzzw00001870
|
9. Disconnect the seat warmer connector.
10. Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of arrow.
amxzzw00001871
|

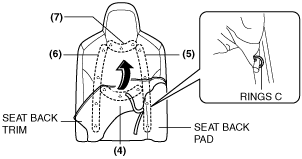

11. Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (4), (5), (6) and (7) shown in the figure, then remove the seat back trim.
amxzzw00002176
|
12. Install in the reverse order of removal.
