SEAT CUSHION TRIM REMOVAL/INSTALLATION

id091300987200

Warning
•  Handling a seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a seat (with built-in side air bag). (See AIR BAG SYSTEM SERVICE WARNINGS.)
Caution
•  After removing a seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the seat is installed.
•  Verify that there are no malfunctions in the sliding mechanism after installing a seat.
•  When performing the procedure with a seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

L.H.D.


Driver-side

1.  Turn the ignition switch to LOCK position.

2.  Remove the battery cover.

3.  Disconnect the negative battery cable and wait 1 min or more. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4.  Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

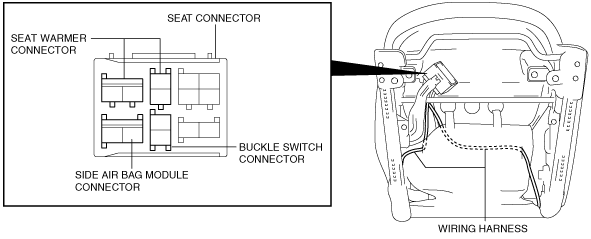

5.  Disconnect the connectors, then remove the side air bag wiring harness. (See Side Air Bag Connector Disconnect Note)

amxzzw00001610

6.  Remove the bolts, then remove the seat cushion.

amxzzw00002177

7.  Detach hook A as shown in the figure in the direction of arrow (1) shown in the figure.

amxzzw00001872

8.  Detach hook B in the direction of arrow (2) shown in the figure.

amxzzw00001873

9.  Detach hook C in the direction of arrow (3) shown in the figure.

amxzzw00001874

10.  Detach hook D in the direction of arrow (4) shown in the figure.

amxzzw00001615

11.  Remove the seat cushion trim and the seat cushion pad from the seat cushion frame as a single unit.

12.  Remove rings C in the order of (5), (6), (7), (8) and (9) as shown in the figure, then remove the seat cushion trim from the seat cushion pad in the direction of arrow shown in the figure.

amxzzw00002178

13.  Install in the reverse order of removal.


Passenger-side

1.  Turn the ignition switch to LOCK position.

2.  Remove the battery cover.

3.  Disconnect the negative battery cable and wait 1 min or more. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4.  Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

5.  Remove the seat side cover. (See SEAT SIDE COVER REMOVAL/INSTALLATION.)

6.  Cut the bands securing the wiring harness.

amxzzw00001618

7.  Disconnect the connectors, then remove the side air bag wiring harness. (See Side Air Bag Connector Disconnect Note)

amxzzw00001619

8.  Remove rings C.

amxzzw00001620

9.  Detach hook A in the direction of arrow (1) shown in the figure.

amxzzw00001621

10.  Detach hook B in the direction of arrow (2) shown in the figure.

amxzzw00001622

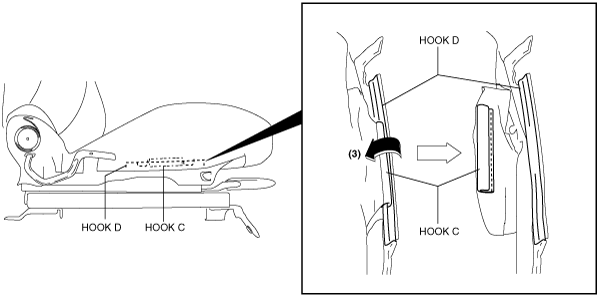

11.  Detach hook C from hook D in the direction of arrow (3) shown in the figure.

amxzzw00001623

12.  Remove the seat cushion trim and the seat cushion pad from the seat frame as a single unit.

13.  Remove rings C in the order of (4), (5), (6), (7) and (8) as shown in the figure, then remove the seat cushion trim from the seat cushion pad in the direction of arrow shown in the figure.

amxzzw00002179

14.  Install in the reverse order of removal.


R.H.D.


Driver-side

1.  Turn the ignition switch to LOCK position.

2.  Remove the battery cover.

3.  Disconnect the negative battery cable and wait 1 min or more. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4.  Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

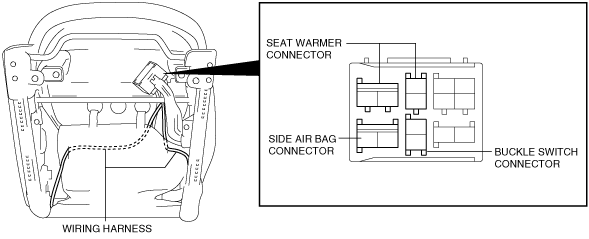

5.  Disconnect the connectors, then remove the side air bag wiring harness. (See Side Air Bag Connector Disconnect Note)

amxzzw00001626

6.  Remove the bolts, then remove the seat cushion.

amxzzw00002180

7.  Detach hook A as shown in the figure in the direction of arrow (1) shown in the figure.

amxzzw00001872

8.  Detach hook B in the direction of arrow (2) shown in the figure.

amxzzw00001873

9.  Detach hook C in the direction of arrow (3) shown in the figure.

amxzzw00001874

10.  Detach hook D in the direction of arrow (4) shown in the figure.

amxzzw00001631

11.  Remove the seat cushion trim and the seat cushion pad from the seat cushion frame as a single unit.

12.  Remove rings C in the order of (5), (6), (7), (8) and (9) as shown in the figure, then remove the seat cushion trim from the seat cushion pad in the direction of arrow shown in the figure.

amxzzw00002178

13.  Install in the reverse order of removal.


Passenger-side

1.  Turn the ignition switch to LOCK position.

2.  Remove the battery cover.

3.  Disconnect the negative battery cable and wait 1 min or more. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

4.  Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

5.  Remove the seat side cover. (See SEAT SIDE COVER REMOVAL/INSTALLATION.)

6.  Cut the bands securing the wiring harness.

amxzzw00001618

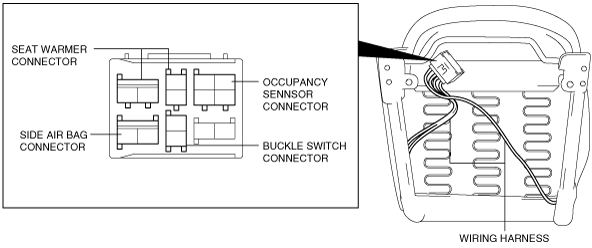

7.  Disconnect the connectors, then remove the side air bag wiring harness. (See Side Air Bag Connector Disconnect Note)

amxzzw00001633

8.  Remove rings C.

amxzzw00001634

9.  Detach hook A in the direction of arrow (1) shown in the figure.

amxzzw00001635

10.  Detach hook B in the direction of arrow (2) shown in the figure.

amxzzw00001636

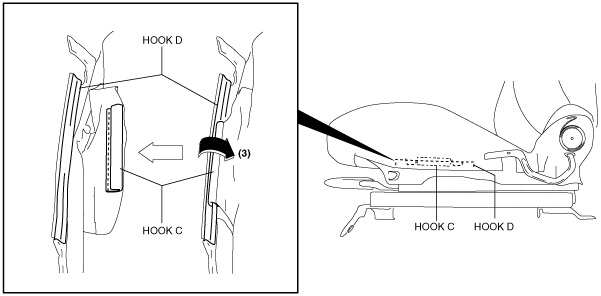

11.  Detach hook C from hook D in the direction of arrow (3) shown in the figure.

amxzzw00001875

12.  Remove the seat cushion trim and the seat cushion pad from the seat frame as a single unit.

13.  Remove rings C in the order of (4), (5), (6), (7) and (8) as shown in the figure, then remove the seat cushion trim from the seat cushion pad in the direction of arrow shown in the figure.

amxzzw00002179

14.  Install in the reverse order of removal.

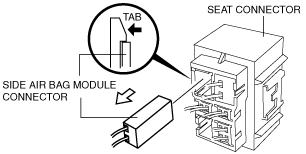

Side Air Bag Connector Disconnect Note

1.  Detach the tab as shown in the figure and remove the connector from the seat connector.

amxzzw00001912
