IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING

id091400441900

Foreword

• When replacing immobilizer system-related parts or programming an additional key, program the immobilizer system-related parts so that the system operates normally. For immobilizer system-related parts programming, select the programming procedures according to the service. (See Selection of Procedure for Immobilizer System-Related Parts Programming.)

Caution

• The engine cannot be started if any step or procedure for each service operation is skipped. Perform all procedures in the order of the steps.

• If any metallic or magnetic object is near the key, communication between the key and the vehicle may be obstructed, resulting in a failure to program the immobilizer system-related parts. Remove any metallic or magnetic objects, such as key holders, from the key when programming immobilizer system-related parts.

• If any of the following devices are inside the vehicle, programming of immobilizer system-related parts may fail. Do not bring any of the following devices or similar products inside the vehicle when programming immobilizer system-related parts.

― M-MDS (IDS)

― Personal computer

― Devices that can send/receive radio waves

• If the engine is started during immobilizer system-related parts programming, the programming mode cancels. Therefore, do not start the engine unless indicated in the procedure. Repeat the procedure from the beginning if the engine is started during the immobilizer system-related parts programming.

Note

• The “Valid key” referred to in this manual indicates the key that can start the engine.

• Two or more key ID numbers must be programmed for the engine to start.

• A maximum of eight key ID numbers can be programmed for one vehicle.

• The number of programmed key ID numbers can be verified using the M-MDS (IDS).

• Do not select any screen menu other than the ones indicated in the procedure during M-MDS (IDS) operation.

Selection of Procedure for Immobilizer System-Related Parts Programming

1. Verify that the room fuse is equipped.

2. Select the applicable programming procedure from the service content of the immobilizer system-related parts.

Immobilizer System-Related Parts Service and Programming Procedure Table

No.	Service content		Programming procedure
1	Additional key programming	Have two or more valid keys	(See No.1 Additional Key Programming Procedure (Using Two Valid Keys).)
2	Additional key programming	Have one valid key or none	(See No. 2 Additional Key Programming Procedure (Using the M-MDS).)
3	Additional key programming procedure setting	Disable programming using valid keys	(See No.3 Additional Key Programming Procedure Changing.)
3	Additional key programming procedure setting	Enable programming using valid keys	(See No.3 Additional Key Programming Procedure Changing.)
4	Programming due to PCM replacement		(See No.4 Programming Procedure Due to PCM Replacement.)
5	Programming due to instrument cluster replacement		(See No.5 Programming Procedure Due to Instrument Cluster Replacement.)
6	Programming due to key cylinder (including key) replacement		(See No.6 Programming Procedure Due to Key Cylinder (Including Key).)
7	Programming due to simultaneous replacement of immobilizer system-related parts • PCM • Instrument cluster		(See No.7 Programming Procedure Due to Simultaneous Replacement of Immobilizer System-related Parts (PCM and Instrument Cluster).)
8	Programming due to coil antenna replacement		Programming of immobilizer system-related parts is not necessary

M-MDS Connecting Procedure

Note

• Do not place the M-MDS in the vehicle while programming the immobilizer system.

1. Fully lower the door glass.

2. Connect the M-MDS to the DLC-2.

e5u914aw4013

3. Place the M-MDS outside the vehicle.

Caution

• Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.

No.1 Additional Key Programming Procedure (Using Two Valid Keys)

Caution

• The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.

Vehicle condition

• Have two or more valid keys.

Note

• If a key ID number cannot be programmed and DTC 15 is displayed, the maximum number of programmed keys may have been reached. Verify the number of programmed key codes using the M-MDS (IDS).

• If eight keys have already been programmed and it is necessary to program other keys, the previously programmed key ID numbers must first be cleared.

• If “Customer spare key programming disable” is selected, perform additional key programming using the M-MDS (IDS). (See No. 2 Additional Key Programming Procedure (Using the M-MDS).)

Procedure

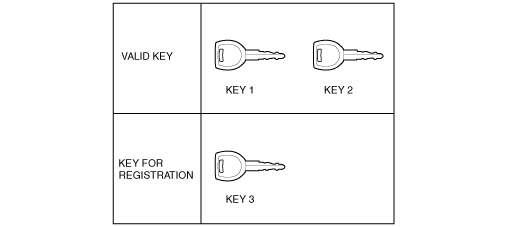

am5ezw00005968

Step

Procedure

Action after procedure

1

LAUNCH PROGRAMMING MODE

1.  Switch the ignition ON using key 1.

2.  After verifying that the security indicator light illuminates for approx. 3 s and turns off, switch the ignition OFF (LOCK) within approx. 4 s.

3.  Remove key 1.

4.  Switch the ignition ON using key 2.

5.  After verifying that the security indicator light illuminates for approx. 3 s and turns off, switch the ignition OFF (LOCK) within approx. 4 s.

6.  Remove key 2.

Go to the next step.

2

PERFORM ADDITIONAL KEY PROGRAMMING

1.  Switch the ignition ON using key 3.

2.  Verify that the security indicator light illuminates for approx. 3 s, and then turns off.

3.  Remove key 3.

4.  Switch the ignition OFF (LOCK).

5.  Are there other keys to be programmed?

Yes

Go back to Step 1.

No

Go to the next step.

3

VERIFY THAT KEY IS PROGRAMMED

•  Verify that the engine can start and run for approx. 5 s or more using all the programmed keys.

Note

•  When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.

Procedure is completed.

Step	Procedure	Action after procedure
1	LAUNCH PROGRAMMING MODE 1. Switch the ignition ON using key 1. 2. After verifying that the security indicator light illuminates for approx. 3 s and turns off, switch the ignition OFF (LOCK) within approx. 4 s. 3. Remove key 1. 4. Switch the ignition ON using key 2. 5. After verifying that the security indicator light illuminates for approx. 3 s and turns off, switch the ignition OFF (LOCK) within approx. 4 s. 6. Remove key 2.	Go to the next step.
2	PERFORM ADDITIONAL KEY PROGRAMMING 1. Switch the ignition ON using key 3. 2. Verify that the security indicator light illuminates for approx. 3 s, and then turns off. 3. Remove key 3. 4. Switch the ignition OFF (LOCK). 5. Are there other keys to be programmed?	Yes	Go back to Step 1.
No	Go to the next step.
3	VERIFY THAT KEY IS PROGRAMMED • Verify that the engine can start and run for approx. 5 s or more using all the programmed keys. Note • When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.	Procedure is completed.

No. 2 Additional Key Programming Procedure (Using the M-MDS)

Caution

• The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.

Vehicle condition

• There is only one valid key, or none.

Note

• If a key ID number cannot be programmed and DTC 15 is displayed, the maximum number of programmable keys may have been exceeded. Verify the number of programmed keys using the M-MDS (IDS).

• If eight keys have already been programmed and it is necessary to program other keys, the previously programmed key ID numbers must first be cleared.

Procedure

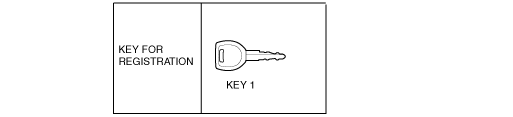

am5ezw00005969

Step

Procedure

Action after procedure

1

PERFORM ADDITIONAL KEY PROGRAMMING

1.  Connect the M-MDS (IDS) to the DLC-2.
(See M-MDS Connecting Procedure.)

2.  Switch the ignition ON using key 1.

Note

•  Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated.

3.  After vehicle identification, select the following from the M-MDS initial screen.

―  Using an IDS (laptop PC):

1.  “Body”

2.  “Security”

3.  “PATS (immobilizer) function”

4.  Then, select the “Program additional ignition key” from the screen menu.

5.  Perform the security access according to the directions on the M-MDS (IDS) screen.

Note

•  After executing the above menu, “This operation is successful” is displayed. At this stage, the programming for the key switching the ignition ON is completed.

6.  After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, switch the ignition OFF (LOCK).

7.  Remove key 1.

8.  Are there other keys to be programmed?

Yes

Change the key and repeat Step 1.

Note

•  Additional key programming can be performed using the procedure in No.1 Additional Key Programming Procedure (Using Two Valid Keys).

No

Go to the next step.

2

M-MDS COMPLETION

1.  After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”.

2.  Switch the ignition OFF (LOCK).

Go to the next step.

3

VERIFY THAT KEY IS PROGRAMMED

Verify that the engine can start and run for approx. 5 s or more using the programmed key.

Note

•  When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.

Procedure is completed.

Step	Procedure	Action after procedure
1	PERFORM ADDITIONAL KEY PROGRAMMING 1. Connect the M-MDS (IDS) to the DLC-2. (See M-MDS Connecting Procedure.) 2. Switch the ignition ON using key 1. Note • Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated. 3. After vehicle identification, select the following from the M-MDS initial screen. ― Using an IDS (laptop PC): 1. “Body” 2. “Security” 3. “PATS (immobilizer) function” 4. Then, select the “Program additional ignition key” from the screen menu. 5. Perform the security access according to the directions on the M-MDS (IDS) screen. Note • After executing the above menu, “This operation is successful” is displayed. At this stage, the programming for the key switching the ignition ON is completed. 6. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, switch the ignition OFF (LOCK). 7. Remove key 1. 8. Are there other keys to be programmed?	Yes	Change the key and repeat Step 1. Note • Additional key programming can be performed using the procedure in No.1 Additional Key Programming Procedure (Using Two Valid Keys).
No	Go to the next step.
2	M-MDS COMPLETION 1. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”. 2. Switch the ignition OFF (LOCK).	Go to the next step.
3	VERIFY THAT KEY IS PROGRAMMED Verify that the engine can start and run for approx. 5 s or more using the programmed key. Note • When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.	Procedure is completed.

No.3 Additional Key Programming Procedure Changing

Note

• This procedure is performed for disabling the “No.1 Additional Key Programming Procedure (Using Two Valid Keys)”.

• The setting is “Customer spare key programming enable” when the vehicle is new or the instrument cluster is replaced with a new one.

Procedure

Step

Procedure

Action after procedure

1

CHANGE CUSTOMER SPARE KEY PROGRAMMING ENABLE

1.  Connect the M-MDS (IDS) to the DLC-2.
(See M-MDS Connecting Procedure.)

2.  Switch the ignition ON using a key (The key can be either the valid key or an unprogrammed key).

Note

•  If an unprogrammed key is used, the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min. However, this does not indicate an improper procedure. Continue to perform the procedure as indicated.

3.  After vehicle identification, select the following from the M-MDS initial screen.

―  Using an IDS (laptop PC):

1.  “Body”

2.  “Security”

3.  “PATS (immobilizer) function”

4.  Select either of the following from the M-MDS (IDS) menu to change the additional key programming procedure.

―   When “Customer spare key programming enable” is selected: The additional key programming procedure using valid keys is enabled.

―  When “Customer spare key programming disable” is selected: The additional key programming procedure using valid keys is disabled.

5.  Perform the security access according to the directions on the M-MDS (IDS) screen.

6.  After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”.

7.  Switch the ignition OFF (LOCK).

Procedure is completed.

Step	Procedure	Action after procedure
1	CHANGE CUSTOMER SPARE KEY PROGRAMMING ENABLE 1. Connect the M-MDS (IDS) to the DLC-2. (See M-MDS Connecting Procedure.) 2. Switch the ignition ON using a key (The key can be either the valid key or an unprogrammed key). Note • If an unprogrammed key is used, the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min. However, this does not indicate an improper procedure. Continue to perform the procedure as indicated. 3. After vehicle identification, select the following from the M-MDS initial screen. ― Using an IDS (laptop PC): 1. “Body” 2. “Security” 3. “PATS (immobilizer) function” 4. Select either of the following from the M-MDS (IDS) menu to change the additional key programming procedure. ― When “Customer spare key programming enable” is selected: The additional key programming procedure using valid keys is enabled. ― When “Customer spare key programming disable” is selected: The additional key programming procedure using valid keys is disabled. 5. Perform the security access according to the directions on the M-MDS (IDS) screen. 6. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”. 7. Switch the ignition OFF (LOCK).	Procedure is completed.

No.4 Programming Procedure Due to PCM Replacement

Caution

• The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.

Vehicle condition

• Have two or more valid keys.

Procedure

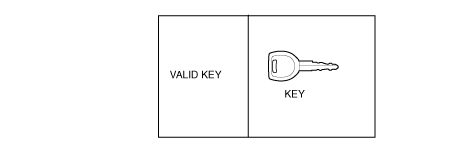

am5ezw00005970

Step

Procedure

Action after procedure

1

REPLACE PCM

Refer to PCM REMOVAL/INSTALLATION to perform PCM replacement and configuration.

(See PCM REMOVAL/INSTALLATION [L8, LF].)

Go to the next step.

2

PERFORM PARAMETER RESET

1.  Connect the M-MDS (IDS) to the DLC-2.
(See M-MDS Connecting Procedure.)

2.  Switch the ignition ON using a valid key.

Note

•  Although the security indicator light remains illuminated and DTC 23 is displayed after approx. 1 min, continue to perform the procedure as indicated.

3.  After vehicle identification, select the following from the M-MDS initial screen.

―  Using an IDS (laptop PC):

1.  “Body”

2.  “Security”

3.  “PATS (immobilizer) function”

4.  Then, select “Parameter Reset” from the screen menu.

5.  Perform the security access according to the directions on the M-MDS (IDS) screen.

6.  Select “PCM” from the replaced parts according to the directions on the M-MDS (IDS) screen.

Caution

•  At this time, do not select the other parts from the M-MDS (IDS) menu.

7.  After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”.

8.  Switch the ignition OFF (LOCK).

9.  Disconnect the M-MDS (IDS) from the DLC-2.

10.  Switch the ignition ON.

11.  Verify that the security indicator light illuminates for approx. 3 s, and then turns off.

12.  Switch the ignition OFF (LOCK).

Go to the next step.

3

VERIFY THAT PCM IS PROGRAMMED

1.  Verify that the engine can be started with all the keys for approx. 5 or more.

2.  Can the engine be started?

Note

•  When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.

Yes

Procedure is completed.

No

Perform the corresponding DTC inspection to repair the malfunctioning part.

Step	Procedure	Action after procedure
1	REPLACE PCM Refer to PCM REMOVAL/INSTALLATION to perform PCM replacement and configuration. (See PCM REMOVAL/INSTALLATION [L8, LF].)	Go to the next step.
2	PERFORM PARAMETER RESET 1. Connect the M-MDS (IDS) to the DLC-2. (See M-MDS Connecting Procedure.) 2. Switch the ignition ON using a valid key. Note • Although the security indicator light remains illuminated and DTC 23 is displayed after approx. 1 min, continue to perform the procedure as indicated. 3. After vehicle identification, select the following from the M-MDS initial screen. ― Using an IDS (laptop PC): 1. “Body” 2. “Security” 3. “PATS (immobilizer) function” 4. Then, select “Parameter Reset” from the screen menu. 5. Perform the security access according to the directions on the M-MDS (IDS) screen. 6. Select “PCM” from the replaced parts according to the directions on the M-MDS (IDS) screen. Caution • At this time, do not select the other parts from the M-MDS (IDS) menu. 7. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”. 8. Switch the ignition OFF (LOCK). 9. Disconnect the M-MDS (IDS) from the DLC-2. 10. Switch the ignition ON. 11. Verify that the security indicator light illuminates for approx. 3 s, and then turns off. 12. Switch the ignition OFF (LOCK).	Go to the next step.
3	VERIFY THAT PCM IS PROGRAMMED 1. Verify that the engine can be started with all the keys for approx. 5 or more. 2. Can the engine be started? Note • When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.	Yes	Procedure is completed.
No	Perform the corresponding DTC inspection to repair the malfunctioning part.

No.5 Programming Procedure Due to Instrument Cluster Replacement

Caution

• The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.

Note

• Since two or more keys need to be programmed to start the engine, program two or more keys after the replacement.

Vehicle condition

• Have two or more keys to be programmed after the replacement.

Procedure

am5ezw00005971

Step

Procedure

Action after procedure

1

REPLACE INSTRUMENT CLUSTER

Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION to perform instrument cluster replacement and configuration.

(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

Go to the next step.

2

PERFORM PARAMETER RESET

1.  Connect the M-MDS (IDS) to the DLC-2.
(See M-MDS Connecting Procedure.)

2.  Switch the ignition ON using a valid key.

Note

•  Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated.

3.  After vehicle identification, select the following from the M-MDS initial screen.

―  Using an IDS (laptop PC):

1.  “Body”

2.  “Security”

3.  “PATS (immobilizer) function”

4.  Then, select “Parameter Reset” from the screen menu.

5.  Perform the security access according to the directions on the M-MDS (IDS) screen.

6.  Select the replaced parts “IC” according to the directions on the M-MDS (IDS) screen.

Caution

•  At this time, do not select the other parts from the M-MDS (IDS) menu.

7.  Verify that the PATS function menu is displayed again on the M-MDS (IDS) screen.

Go to the next step.

3

PERFORM KEY ID NUMBER CLEARING

1.  Then, select the “Ignition Key Code Erase and Program” from the screen menu.

2.  Clear the key ID number according to the directions on the M-MDS (IDS).

Go to the next step.

4

PERFORM KEY ID NUMBER PROGRAMMING

1.  Program two keys according to the directions on the M-MDS (IDS).

2.  After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”.

3.  Switch the ignition OFF (LOCK).

4.  Disconnect the M-MDS (IDS) from the DLC-2.

Go to the next step.

5

VERIFY PROGRAMMING IS PERFORMED CORRECTLY

1.  Verify that the engine can be started with all the keys for approx. 5 s or more.

2.  Can the engine be started?

Note

•  When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.

Yes

Procedure is completed.

No

Perform the corresponding DTC inspection to repair the malfunctioning part.

Step	Procedure	Action after procedure
1	REPLACE INSTRUMENT CLUSTER Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION to perform instrument cluster replacement and configuration. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)	Go to the next step.
2	PERFORM PARAMETER RESET 1. Connect the M-MDS (IDS) to the DLC-2. (See M-MDS Connecting Procedure.) 2. Switch the ignition ON using a valid key. Note • Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated. 3. After vehicle identification, select the following from the M-MDS initial screen. ― Using an IDS (laptop PC): 1. “Body” 2. “Security” 3. “PATS (immobilizer) function” 4. Then, select “Parameter Reset” from the screen menu. 5. Perform the security access according to the directions on the M-MDS (IDS) screen. 6. Select the replaced parts “IC” according to the directions on the M-MDS (IDS) screen. Caution • At this time, do not select the other parts from the M-MDS (IDS) menu. 7. Verify that the PATS function menu is displayed again on the M-MDS (IDS) screen.	Go to the next step.
3	PERFORM KEY ID NUMBER CLEARING 1. Then, select the “Ignition Key Code Erase and Program” from the screen menu. 2. Clear the key ID number according to the directions on the M-MDS (IDS).	Go to the next step.
4	PERFORM KEY ID NUMBER PROGRAMMING 1. Program two keys according to the directions on the M-MDS (IDS). 2. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”. 3. Switch the ignition OFF (LOCK). 4. Disconnect the M-MDS (IDS) from the DLC-2.	Go to the next step.
5	VERIFY PROGRAMMING IS PERFORMED CORRECTLY 1. Verify that the engine can be started with all the keys for approx. 5 s or more. 2. Can the engine be started? Note • When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.	Yes	Procedure is completed.
No	Perform the corresponding DTC inspection to repair the malfunctioning part.

No.6 Programming Procedure Due to Key Cylinder (Including Key)

Caution

• The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.

Note

• Since two or more keys need to be programmed to start the engine, program two or more keys after the replacement.

Vehicle condition

• Have two or more keys to be programmed after the replacement.

Procedure

am5ezw00005971

Step

Procedure

Action after procedure

1

REPLACE KEY CYLINDER

Replace the key cylinder.

(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

Go to the next step.

2

PERFORM KEY ID NUMBER CLEARING

1.  Connect the M-MDS (IDS) to the DLC-2.
(See M-MDS Connecting Procedure.)

2.  Switch the ignition ON using the key to be programmed.

Note

•  Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, continue to perform the procedure as indicated.

3.  After vehicle identification, select the following from the M-MDS initial screen.

―  Using an IDS (laptop PC):

1.  “Body”

2.  “Security”

3.  “PATS (immobilizer) function”

4.  Then, select the “Ignition Key Code Erase and Program” from the screen menu.

5.  Perform the security access according to the directions on the M-MDS (IDS) screen.

6.  Clear the key ID number according to the directions on the M-MDS (IDS).

Go to the next step.

3

PERFORM KEY ID NUMBER PROGRAMMING

1.  Program two keys according to the directions on the M-MDS (IDS).

2.  After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”.

3.  Switch the ignition OFF (LOCK).

4.  Disconnect the M-MDS (IDS) from the DLC-2.

Go to the next step.

4

VERIFY PROGRAMMING IS PERFORMED CORRECTLY

1.  Verify that the engine can be started with all the keys for approx. 5 s or more.

2.  Can the engine be started?

Note

•  When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.

Yes

Procedure is completed.

No

Perform the corresponding DTC inspection to repair the malfunctioning part.

Step	Procedure	Action after procedure
1	REPLACE KEY CYLINDER Replace the key cylinder. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)	Go to the next step.
2	PERFORM KEY ID NUMBER CLEARING 1. Connect the M-MDS (IDS) to the DLC-2. (See M-MDS Connecting Procedure.) 2. Switch the ignition ON using the key to be programmed. Note • Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, continue to perform the procedure as indicated. 3. After vehicle identification, select the following from the M-MDS initial screen. ― Using an IDS (laptop PC): 1. “Body” 2. “Security” 3. “PATS (immobilizer) function” 4. Then, select the “Ignition Key Code Erase and Program” from the screen menu. 5. Perform the security access according to the directions on the M-MDS (IDS) screen. 6. Clear the key ID number according to the directions on the M-MDS (IDS).	Go to the next step.
3	PERFORM KEY ID NUMBER PROGRAMMING 1. Program two keys according to the directions on the M-MDS (IDS). 2. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”. 3. Switch the ignition OFF (LOCK). 4. Disconnect the M-MDS (IDS) from the DLC-2.	Go to the next step.
4	VERIFY PROGRAMMING IS PERFORMED CORRECTLY 1. Verify that the engine can be started with all the keys for approx. 5 s or more. 2. Can the engine be started? Note • When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.	Yes	Procedure is completed.
No	Perform the corresponding DTC inspection to repair the malfunctioning part.

No.7 Programming Procedure Due to Simultaneous Replacement of Immobilizer System-related Parts (PCM and Instrument Cluster)

Caution

• The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.

Note

• Since two or more keys need to be programmed to start the engine, program two or more keys after the replacement.

Vehicle condition

• Have two or more keys to be programmed after the replacement.

Procedure

am5ezw00005971

Step

Procedure

Action after procedure

1

REPLACE INSTRUMENT CLUSTER

Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION to perform instrument cluster replacement and configuration.

(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

Go to the next step.

2

REPLACE PCM

Refer to PCM REMOVAL/INSTALLATION to perform PCM replacement and configuration.

(See PCM REMOVAL/INSTALLATION [L8, LF].)

Go to the next step.

3

PERFORM PARAMETER RESET

1.  Connect the M-MDS (IDS) to the DLC-2.
(See M-MDS Connecting Procedure.)

2.  Switch the ignition ON using a valid key.

Note

•  Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated.

3.  After vehicle identification, select the following from the M-MDS initial screen.

―  Using an IDS (laptop PC):

1.  “Body”

2.  “Security”

3.  “PATS (immobilizer) function”

4.  Then, select “Parameter Reset” from the screen menu.

5.  Perform the security access according to the directions on the M-MDS (IDS) screen.

6.  Select the replaced part according to the directions on the M-MDS (IDS) screen.

―  If the PCM is replaced: Select “PCM”.

―  If the instrument cluster is replaced: Select “IC”.

Caution

•  At this time, do not select the other parts from the M-MDS (IDS) menu.

7.  Verify that the PATS function menu is displayed again on the M-MDS (IDS) screen.

Go to the next step.

4

PERFORM KEY ID NUMBER CLEARING

1.  Then, select “Ignition Key Code Erase and Program” from the screen menu.

2.  Clear the key ID number according to the directions on the M-MDS (IDS).

Go to the next step.

5

PERFORM KEY ID NUMBER PROGRAMMING

1.  Program two keys according to the directions on the M-MDS (IDS).

2.  After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select “Finish (this menu)”.

3.  Switch the ignition OFF (LOCK).

4.  Disconnect the M-MDS (IDS) from the DLC-2.

Go to the next step.

6

VERIFY PROGRAMMING IS PERFORMED CORRECTLY

1.  Verify that the engine can be started with all the keys for approx. 5 s or more.

2.  Can the engine be started?

Note

•  When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.

Yes

Procedure is completed.

No

Perform the corresponding DTC inspection to repair the malfunctioning part.
