FUEL-FILLER LID OPENER REMOVAL/INSTALLATION

id091400804800

1.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Partition board (See PARTITION BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

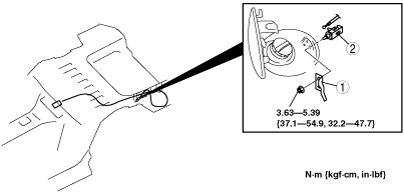

2.  Remove in the order indicated in the table.

amxzzw00000565

1	Lift spring
2	Fuel-filler lid opener

3.  Install in the reverse order of removal.

4.  Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)
