POWER RETRACTABLE HARDTOP LIMIT SWITCH INSPECTION


id091600810300

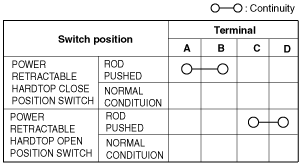

1.  Verify that the continuity between the power retractable hardtop limit switch terminals is as indicated in the table.

e5e916zw6022
•  If not as indicated in the table, replace the roof motor link (RH). (The power retractable hardtop limit switch is integrated with the roof motor link (RH).)
e5e916zw6023
