FRONT UNDER COVER REMOVAL/INSTALLATION

id091600819400

1.  Remove the splash shield A. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

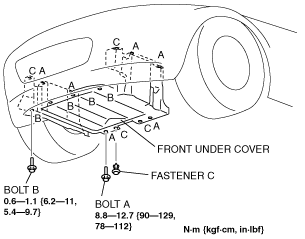

2.  Remove the bolts A at section A shown in the figure.

amxzzw00000971

3.  Remove the bolts B at section B shown in the figure.

4.  Remove the fasteners C at section C shown in the figure.

5.  Remove the front under cover.

6.  Install in the reverse order of removal.
