METER HOOD REMOVAL/INSTALLATION

id091700454300

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

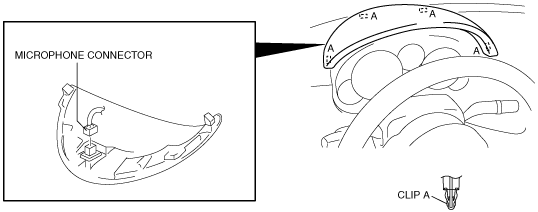

3.  Pull the meter hood upward and detach clips A.

amxzzw00001403

4.  Disconnect the microphone connector. (See MICROPHONE REMOVAL/INSTALLATION.)

5.  Remove the meter hood.

6.  Install in the reverse order of removal.
