SEAT BACK BAR GARNISH REMOVAL/INSTALLATION

id091700808000

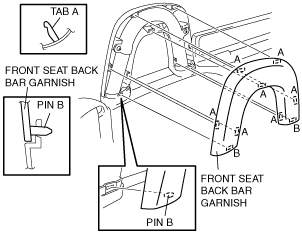

1.  Pull the front seat back bar garnish outward and detach tabs A and pins B.

e5u917zw5039

2.  Remove the front seat back bar garnish.

3.  Remove the screws.

e5u917zw5040

4.  Pull the rear seat back bar garnish upward and detach clips A.

5.  Remove the rear seat back bar garnish.

6.  Install in the reverse order of removal.
