LIGHT SWITCH INSPECTION

id091800469800

Left Side Of The Steering Column

1.  Verify that the continuity between the light switch terminals is as indicated in the table.

Headlight Switch

amxzzw00001061

•  If not as indicated in the table, replace the light switch.

amxzzw00001062

Turn Switch

amxzzw00001073

amxzzw00001074

Right Side Of The Steering Column

1.  Verify that the continuity between the light switch terminals is as indicated in the table.

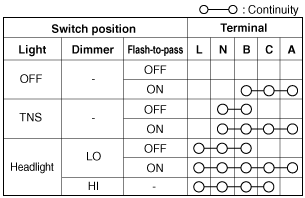

Headlight Switch

amxzzw00001063

•  If not as indicated in the table, replace the light switch.

amxzzw00001064

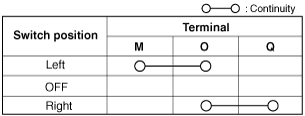

Turn Switch

amxzzw00001065

amxzzw00001066
