REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION


id091800719600

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Jack up the vehicle and remove the wheel and tire.

4.  Disconnect the connector.

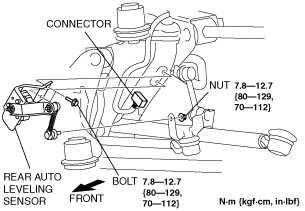

amxzzw00001097

5.  Remove the bolts and nut, then remove the rear auto leveling sensor.

6.  Install in the reverse order of removal.
