WIPER MOTOR REMOVAL/INSTALLATION

id091900804500

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

4.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

5.  Disconnect the connector.

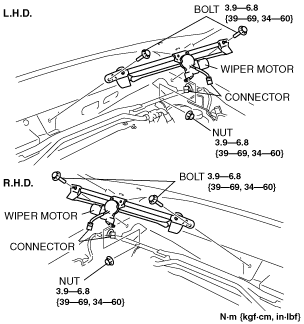

amxzzw00000740

6.  Remove the bolts.

7.  Remove the nut.

8.  Install in the reverse order of removal.
