CENTER PANEL UNIT CONSTRUCTION

id092000101500

• A center panel unit has been adopted with the audio unit and climate control unit installed, and the audio switches and display built into the center panel.

Structural View

amxzzn00000261

Terminal Layout and Signal

Audio unit

Terminal

Signal

1A

Door speaker LH (+)

1B

B+ (Power back up)

1C

Door speaker LH (–)

1D

Door speaker RH (+)

1E

TNS (+)

1F

Door speaker RH (–)

1G

Illumination (–)

1H

Antenna control

1I

Vehicle speed signal

1J

AMP control^*1

1K

—

1L

—

1M

—

1N

Audio control switch 1

1O

CAN_H^*2

1P

Audio control switch 2

1Q

CAN_L^*2

1R

ACC

1S

Rear speaker RH (–)^*3/ Rear speaker LH (+)^*1

1T

AudioPilot^®2 control^*1

1U

Rear speaker RH (+)^*3 / Rear speaker LH (–)^*1

1V

Rear speaker LH (–)^*3 / Rear speaker RH (+)^*1

1W

Power ground

1X

Rear speaker LH (+)^*3/ Rear speaker RH (–)^*1

Terminal

Signal

2A

Power ground

2B

TEL (+)^*2

2C

Input signal RH (+)

2D

Input signal RH (–)

2E

Input signal LH (+)

2F

Input signal LH (–)

2G

—

2H

—

2I

—

2J

TEL (–)^*2

2K

—

2L

—

2M

AUX control

2N

—

2O

—

2P

—

Terminal	Signal
	1A	Door speaker LH (+)
1B	B+ (Power back up)
1C	Door speaker LH (–)
1D	Door speaker RH (+)
1E	TNS (+)
1F	Door speaker RH (–)
1G	Illumination (–)
1H	Antenna control
1I	Vehicle speed signal
1J	AMP control^*1
1K	—
1L	—
1M	—
1N	Audio control switch 1
1O	CAN_H^*2
1P	Audio control switch 2
1Q	CAN_L^*2
1R	ACC
1S	Rear speaker RH (–)^3/ Rear speaker LH (+)^1
1T	AudioPilot^®2 control^*1
1U	Rear speaker RH (+)^3 / Rear speaker LH (–)^1
1V	Rear speaker LH (–)^3 / Rear speaker RH (+)^1
1W	Power ground
1X	Rear speaker LH (+)^3/ Rear speaker RH (–)^1

Terminal	Signal
	2A	Power ground
2B	TEL (+)^*2
2C	Input signal RH (+)
2D	Input signal RH (–)
2E	Input signal LH (+)
2F	Input signal LH (–)
2G	—
2H	—
2I	—
2J	TEL (–)^*2
2K	—
2L	—
2M	AUX control
2N	—
2O	—
2P	—

*1 :With Bose^®

*2 :With HF/TEL unit

*3 :Without Bose^®

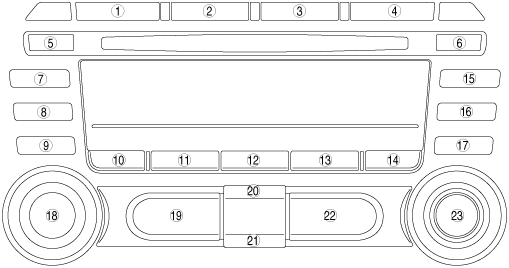

Switch Location

amxzzn00000264

No.

Switch name

With RDS (radio data system)

Without RDS (radio data system)

1

FM 1/2 switch

2

AM switch

3

CD switch

4

AUX switch

5

LOAD switch

6

Eject switch

7

H/PRESET switch 1

8

M/PRESET switch 2

9

PRESET switch 3

10

CLOCK switch

11

PTY switch

SCAN switch

12

TA switch

RDM switch

13

AUTO-M switch

14

TEXT switch

15

RPT/PRESET switch 4

16

RDM/PRESET switch 5

PRESET switch 5

17

PRESET switch 6

18

POWER/VOLUME switch

AUDIO CONT/TUNE switch

19

SEEK/TRACK switch (down)

20

DISC/FOLDER switch (up)

21

DISC/FOLDER switch (down)

22

SEEK/TRACK switch (up)

23

AUDIO CONT/TUNE switch

POWER/VOLUME switch

No.	Switch name
No.	With RDS (radio data system)	Without RDS (radio data system)
1	FM 1/2 switch
2	AM switch
3	CD switch
4	AUX switch
5	LOAD switch
6	Eject switch
7	H/PRESET switch 1
8	M/PRESET switch 2
9	PRESET switch 3
10	CLOCK switch
11	PTY switch	SCAN switch
12	TA switch	RDM switch
13	AUTO-M switch
14	TEXT switch
15	RPT/PRESET switch 4
16	RDM/PRESET switch 5	PRESET switch 5
17	PRESET switch 6
18	POWER/VOLUME switch	AUDIO CONT/TUNE switch
19	SEEK/TRACK switch (down)
20	DISC/FOLDER switch (up)
21	DISC/FOLDER switch (down)
22	SEEK/TRACK switch (up)
23	AUDIO CONT/TUNE switch	POWER/VOLUME switch
