CENTER SPEAKER REMOVAL/INSTALLATION
id092000806000
1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

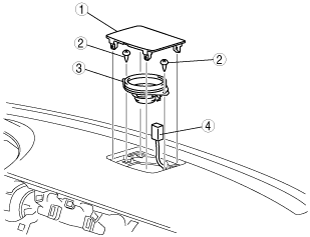

3. Remove in the order indicated in the table.
amxzzw00002307
|
|
1
|
Center speaker cover
|
|
2
|
Screw
|
|
3
|
Center speaker
|
|
4
|
Connector
|
4. Install in the reverse order of removal.
Center Speaker Cover Removal Note
1. Insert a tape-wrapped fastener remover into the service hole.
e5u920zw5012
|
2. Pry with the tape-wrapped fastener remover in the direction shown by the arrow to remove the center speaker cover.
