HINGE PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008613500

1.  Drill the 2 locations indicated by (A) from the interior.

2.  Remove the hinge pillar (outer).

3.  Remove the spot weld sealer using a disc grinder.

d5u0980b074

4.  Remove the cowl side panel.

5.  Remove the spot weld sealer using a disc grinder.

d5u0980b075

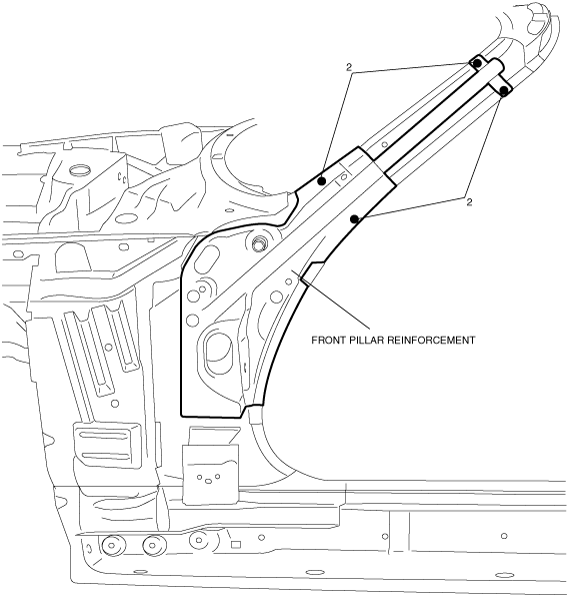

6.  Remove the front pillar reinforcement.

d5u0980b076

7.  Remove the front pillar (inner).

d5u0980b077
