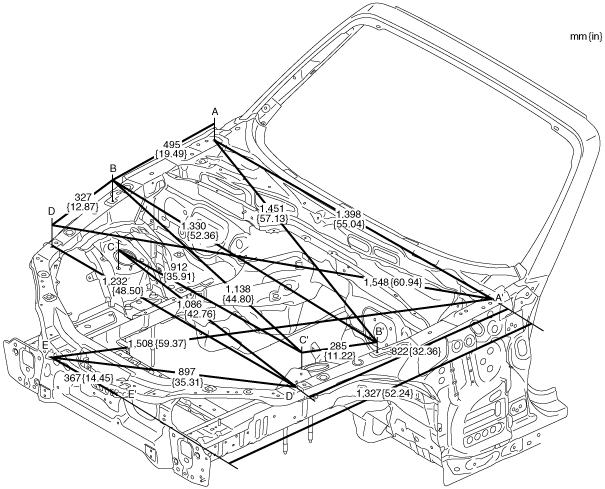

FRONT BODY STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]
id098010740700
amxzzb00000017
|
amxzzb00000018
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|

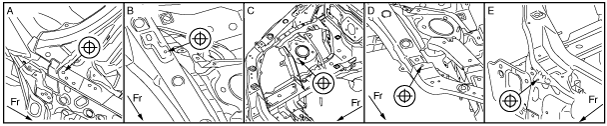

A
|
Bonnet hinge installation hole
|
ø12 {0.47}
|
|
B
|
Front fender installation hole
|
ø7 {0.28}
|
|
C
|
Suspension housing upper datum hole
|
ø13 {0.51}
|
|
D
|
Front fender installation hole
|
ø10 {0.39}
|
|
E
|
Front bumper installation hole
|
ø7 {0.28}
|
