ROOM STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]

id098010746200

amxzzb00000026

amxzzb00000027

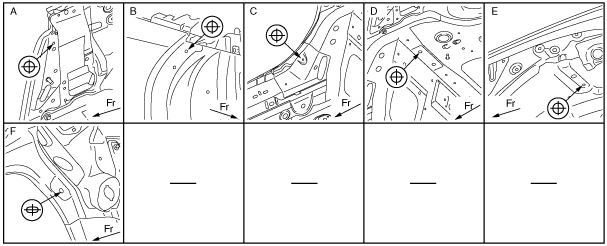

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Center pillar inner datum hole

ø14 {0.55}

B

Weather strip datum hole

ø5.2 {0.20}

C

Side sill inner rear datum hole

ø7 {0.28}

D

Center floor pan datum hole

ø12 {0.47}

E

Wheel house inner datum hole

ø10 {0.39}

F

Rear fender rein rail datum slot

ø12 x 7.2 {0.47x0.28}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Center pillar inner datum hole	ø14 {0.55}
B	Weather strip datum hole	ø5.2 {0.20}
C	Side sill inner rear datum hole	ø7 {0.28}
D	Center floor pan datum hole	ø12 {0.47}
E	Wheel house inner datum hole	ø10 {0.39}
F	Rear fender rein rail datum slot	ø12 x 7.2 {0.47x0.28}
