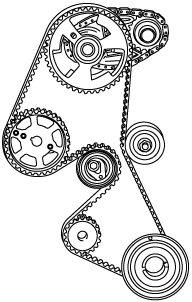

•  As shown in the figure, timing holes are located on the intake camshaft timing pulley, the crankshaft timing pulley, and on the fuel pump pulley. These must be aligned with the respective opposite holes on the engine.

•  In this position the intake camshaft timing pulley, the crankshaft timing pulley, and the fuel pump pulley are each secured by means of the SST.
