CYLINDER HEAD COVER CONSTRUCTION [MZ-CD 1.4 DI Turbo]


id0110b8100200

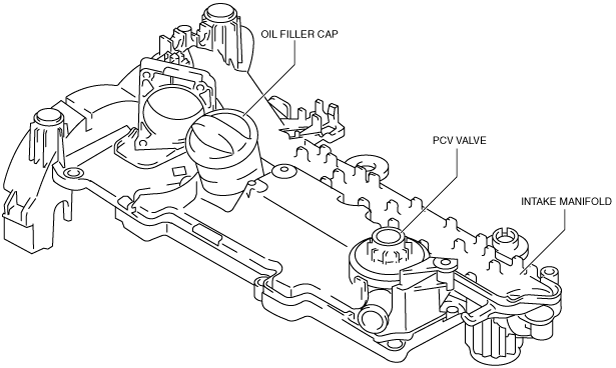

Cylinder Head Cover

•  The cylinder head is made of plastic, and integrated with the intake manifold, positive crankcase ventilation (PCV) valve and oil filler cap.
•  A separate gasket forms the seal between the cylinder head cover and the top part of the camshaft housing.
•  The joints between the intake manifold and the cylinder head intake ports in the cylinder head consist of four separate sealing rings.
am2zzn00000978
