CYLINDER HEAD CONSTRUCTION [MZ-CD 1.4 DI Turbo]


id0110b8100300

•  The cylinder head is made of aluminium.
•  The cylinder head has a passage for the EGR, and has intake ports which open upwards.
•  The cylinder head is equipped with two valves per combustion chamber. The valve seats and guides are made of sintered steel.
•  The intake ports are on the right-hand side of the engine, and the exhaust ports are on the left-hand side of the engine.

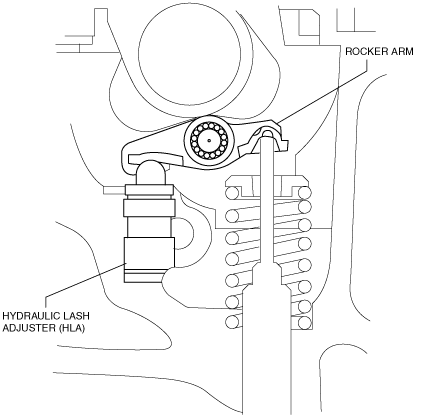

am2zzn00000982
