•  The pistons are made from a light-metal alloy and each piston incorporates a combustion chamber in the piston crown.

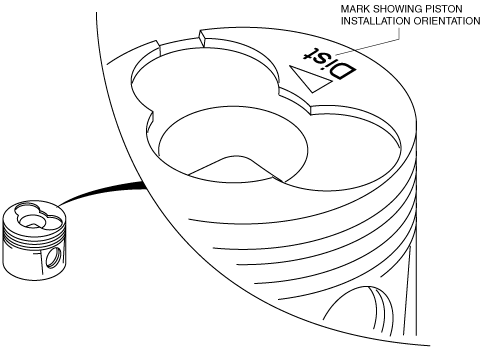

•  The piston crown also has an arrow to show the piston installation orientation, and which must point towards the timing gear end of the engine.

•  Pistons are only available in one weight category.

•  The piston pin is a floating fit and is held in position by two snap rings.
