OIL PUMP CONSTRUCTION [MZ-CD 1.4 DI Turbo]

id0111d4100600

• The trochoid gear type oil pump is located at the timing gear end of the engine and driven by the crankshaft directly for noise reduction.

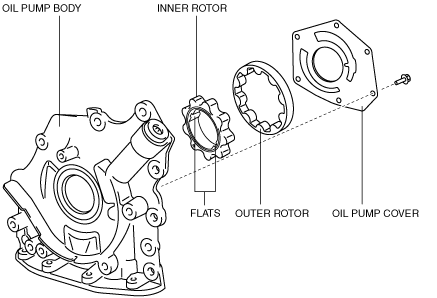

• The oil pump consists of an oil pump body with a built-in relief valve, inner rotor, outer rotor and oil pump cover.

• An aluminum alloy oil pump body has been adopted to reduce weight.

• A pressure relief valve has been built into the oil pump body.

• The inner rotor has two flats which form a keyed connection with the crankshaft.

am2zzn00001005

Oil pump specification

Item	Engine speed [rpm]	Specification (kPa {kgf/cm², psi})
Oil discharge pressure (reference value) [Oil temperature: 110°C {230°F}]	750 (Idle speed)	100—200 {1.02—2.03, 14.6—29.0}
	2,000	230—370 {2.35—3.77, 33.4—53.6}
Relief valve opening pressure (reference value)		500 {5.10, 72.5}
