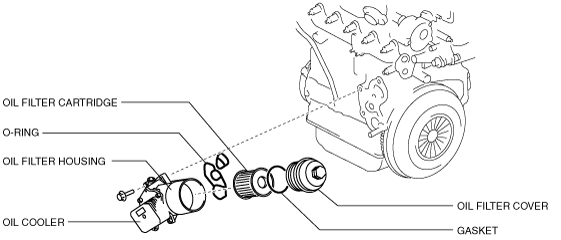

•  The oil filter component is located on the exhaust side of the engine near the flywheel.

•  The oil filter component consists of a two-piece housing with replaceable filter cartridge and flange-mounted oil cooler.

•  The oil cooler is an oil/water heat exchanger.

•  An aluminum oil filter housing has been adopted for weight reduction.

•  There is a blanking plug on the oil filter element for the drain bore in the filter housing. When a new oil filter element is being installed, the oil can flow out through the housing, so that there is no contamination caused by escaping oil.
