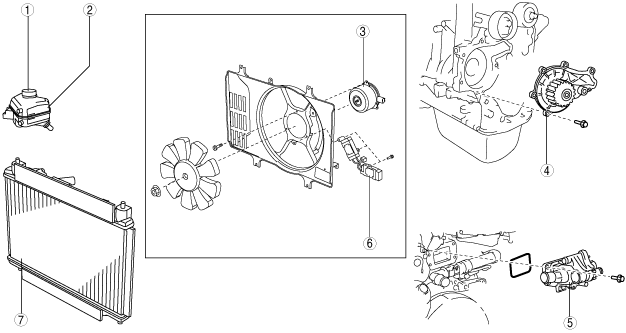

COOLING SYSTEM LOCATION INDEX [MZ-CD 1.6 (Y6)]

id0112c3800100

am2zzw00003148

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [MZ-CD 1.6 (Y6)])
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [MZ-CD 1.6 (Y6)].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
3	Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See COOLING FAN MOTOR INSPECTION [MZ-CD 1.6 (Y6)].)
4	Water pump (See WATER PUMP REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
5	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
6	Cooling fan solenoid resistor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See COOLING FAN MOTOR INSPECTION [MZ-CD 1.6 (Y6)].)
7	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [MZ-CD 1.6 (Y6)].) (See ENGINE COOLANT REPLACEMENT [MZ-CD 1.6 (Y6)].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZ-CD 1.6 (Y6)].) (See RADIATOR REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)
