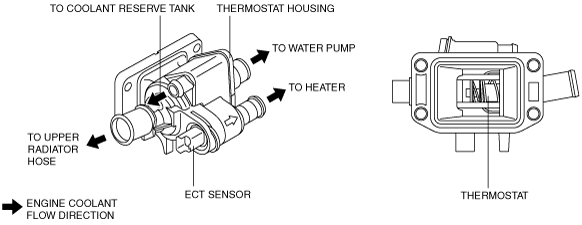

•  The thermostat housing is flange-mounted to the cylinder head on the transmission side of the engine.

•  The thermostat valve and ECT sensor is integrated into the thermostat housing.

•  The thermostat housing is made of plastic and cannot be disassembled.

•  ECT sensor can be replaced separately.

•  The thermostat valve opens the flow to the radiator at a coolant temperature of 83 °C {181 °F}.
