FUEL TANK REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)]

id0114c3801600

Warning
•  Repairing a fuel tank containing fuel is dangerous. Explosion or fire may cause death or serious injury. Always properly steam clean a fuel tank before repairing it.
•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching a vehicle.

1.  Level the vehicle.

2.  Follow “BEFORE SERVICE PRECAUTION” before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION [MZ-CD 1.6 (Y6)].)

3.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

4.  Open the fuel-filler cap.

5.  Drain the fuel using the following procedure.

When the fuel tank is full
1.  Disconnect the breather hose from the fuel-filler pipe.
2.  Drain the fuel by tilting the breather hose.
3.  Siphon the fuel from the fuel tank using a fuel drawing pump.
When the fuel tank is not full
1.  Disconnect the joint hose from the fuel-filler pipe.
2.  Drain the fuel by tilting the joint hose.
3.  Siphon the fuel from the fuel tank using a fuel drawing pump.

6.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

7.  Remove the service hole cover.

8.  Disconnect the fuel gauge sender unit connector.

9.  Disconnect the quick release connector.

10.  Remove the tunnel member. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

11.  Remove the middle pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

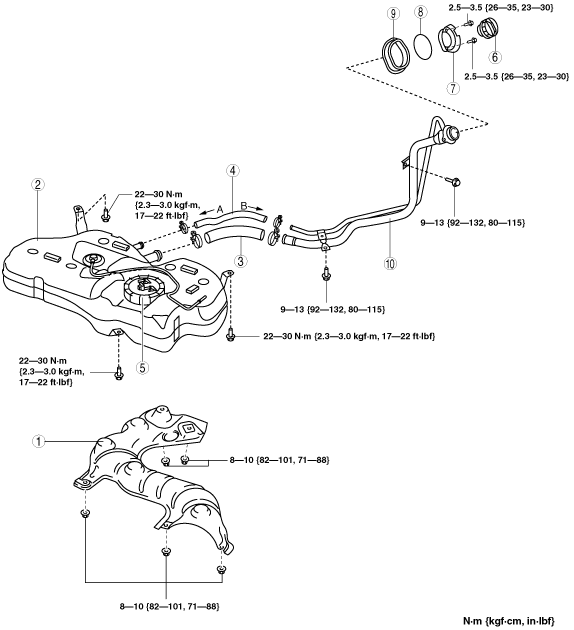

12.  Remove in the order indicated in the table.

13.  Install in the reverse order of removal.

14.  Inspect all parts by performing “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZ-CD 1.6 (Y6)].)

am2zzw00002748

1
Insulator
2
Fuel tank component
(See Fuel Tank Component Removal Note.)
3
Joint hose
(See Joint Hose Installation Note.)
4
Breather hose
(See Breather Hose Installation Note.)
5
Fuel gauge sender unit
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)
6
Fuel-filler cap
7
Fuel-filler cap cover
8
O-ring
9
Dust cover
10
Fuel-filler pipe
(See Fuel-Filler Pipe Removal Note.)


Fuel Tank Component Removal Note

1.  Disconnect the joint hose (fuel-filler pipe side).

2.  Disconnect the breather hose (fuel-filler pipe side).

3.  Set the parking cable out of the way.

4.  Remove the fuel tank component.


Fuel-Filler Pipe Removal Note

1.  Remove the splash shield (LH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

2.  Remove the fuel-filler pipe.


Breather Hose Installation Note

1.  Install the breather hose and clamp as shown in the figure.

am2zzw00003022


Joint Hose Installation Note

1.  Install the joint hose and clamp as shown in the figure.

am2zzw00003023
