GENERATOR DISASSEMBLY/ASSEMBLY [ZJ, ZY]

id011724800400

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

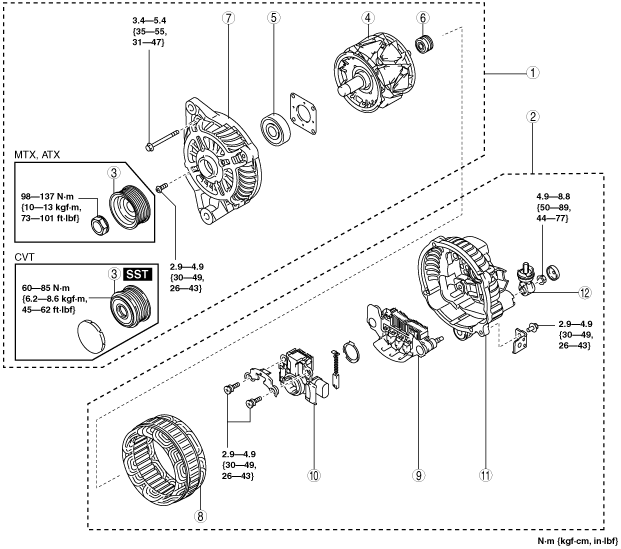

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

am2zzw00004351

1
Rotor component
2
Stator coil component
3
Pulley
(See Pulley Disassembly/Assembly Note (CVT).)
4
Rotor
5
Front bearing
6
Rear bearing
7
Front cover
8
Stator coil
9
Rectifier
10
Regulator component
11
Rear cover
12
Terminal B


Pulley Disassembly/Assembly Note (CVT)

1.  Disassemble/assemble the pulley using the SST.

am3zzw00006361

Tightening torque
60—85 N·m {6.2—8.6 kgf·m, 45—62 ft·lbf}
