PCM REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo]
id0140b8802400
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
2. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo].)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

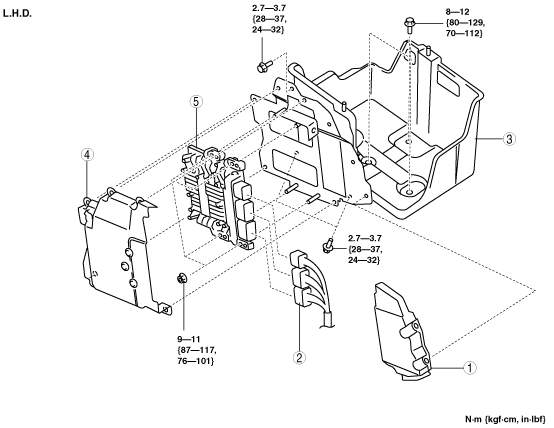

am2zzw00003002
|
|
1
|
PCM upper cover
|
|
2
|
PCM connector (See PCM Connector Removal Note.)
|
|
3
|
Battery tray assembly
|
|
4
|
PCM lower cover
|
|
5
|
PCM
|

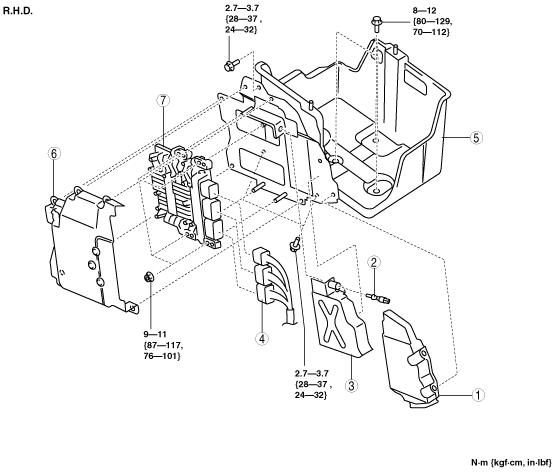

am2zzw00003003
|
|
1
|
PCM upper cover
|
|
2
|
Set bolt
(See Set Bolt Removal Note.)
(See Set Bolt Installation Note.)
|
|
3
|
PCM connector cover
|
|
4
|
PCM connector (See PCM Connector Removal Note.)
|
|
5
|
Battery tray assembly
|
|
6
|
PCM lower cover
|
|
7
|
PCM
|
Set Bolt Removal Note
1. Using a chisel and a hammer, cut a groove on the head of the set nut/bolt so that a screwdriver can be inserted.
2. Loose the set nut/bolt using an impact screwdriver or pliers.
am6zzw00001169
|
PCM Connector Removal Note
1. Detach the PCM electrical connectors in the sequence shown.
am2zzw00003004
|
Set Bolt Installation Note
1. Install a new set nut/bolt and tighten it until the neck of the nut/bolt is cut.
am6zzw00001170
|
