AIR FUEL RATIO (A/F) SENSOR INSPECTION [ZJ, ZY]

id0140c4899600

Sensor Output Value Inspection (A/F sensor)

1.  Perform the inspection according to the following procedure using the PID/DATA monitor function. (See ON-BOARD DIAGNOSTIC TEST [ZJ, ZY].)

(1)  Start the engine and warm it up.

(2)  Drive the vehicle.

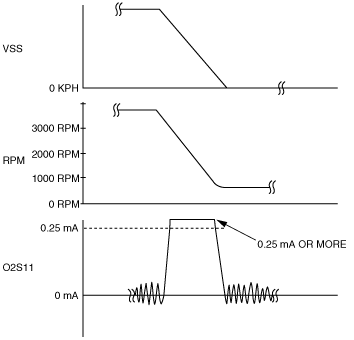

(3)  Release the accelerator pedal while the engine speed is at 3,000 rpm or more and verify that the following monitor items fluctuate as shown in the figure while the vehicle decelerates.

•  VSS

•  RPM

•  O2S11

am2zzw00000963

(4)  If not as specified, replace A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].)

Resistance Inspection (A/F sensor heater)

1.  Disconnect the A/F sensor connector.

2.  Measure the resistance between A/F sensor terminals C and D.

am2zzw00000965

•  If not as specified, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [ZJ, ZY].)
