DOUBLE SYNCHRONIZER MECHANISM STRUCTURE [B65M-R]
id0515h3100500
Features
• A double cone synchronizer mechanism is used for the 1st and 2nd gears.
• The effective synchronization surface for double synchronization is almost twice that of simple synchronization. Because of this, the speeds of the gearwheels are equalized much faster, which considerably improves gear shifting comfort.

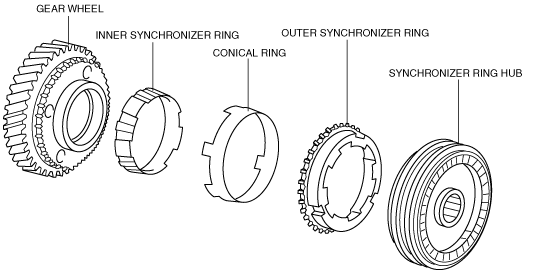

Structure
