OIL SEAL (DIFFERENTIAL) REPLACEMENT [B65M-R]

OIL SEAL (DIFFERENTIAL) REPLACEMENT [B65M-R]

id0515h3800200

1. Separate the drive shaft and joint shaft from the transaxle. (See DRIVE SHAFT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)

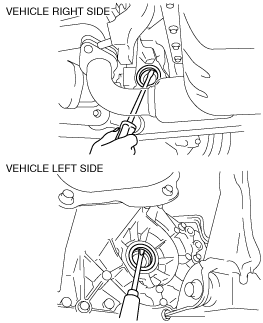

2. Remove the oil seals using a screwdriver.

am2zzw00002901

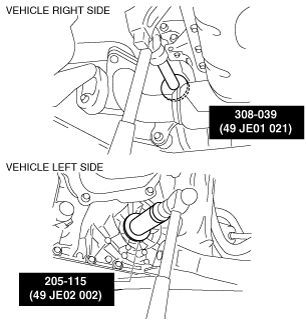

3. Using the SST and a hammer, tap each new oil seal in evenly until the SST contacts the transaxle case.

am2zzw00002902

4. Coat the lip of each oil seal with transaxle oil.

5. Insert the drive shaft and joint shaft to the transaxle. (See DRIVE SHAFT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].) (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)].)
