ROAD TEST [FN4A-EL]

id051701802200

Warning

•  When performing a road test, be aware of other vehicles, people, impediments, etc. to avoid an accident.

Note

•  When the legal speed limit must be exceeded, use a chassis dynamometer instead of performing a road test.

Road Test Preparation

1.  Inspect the engine coolant. (See ENGINE COOLANT LEVEL INSPECTION [ZJ, ZY].)

2.  Inspect the engine oil. (See ENGINE OIL LEVEL INSPECTION [ZJ, ZY].)

3.  Inspect the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [FN4A-EL].)

4.  Inspect the idle speed. (See ENGINE TUNE-UP [ZJ, ZY].)

5.  Inspect the ignition timing. (See ENGINE TUNE-UP [ZJ, ZY].)

6.  Verify that no DTCs recorded. (See ON-BOARD DIAGNOSTIC TEST [ZJ, ZY].)

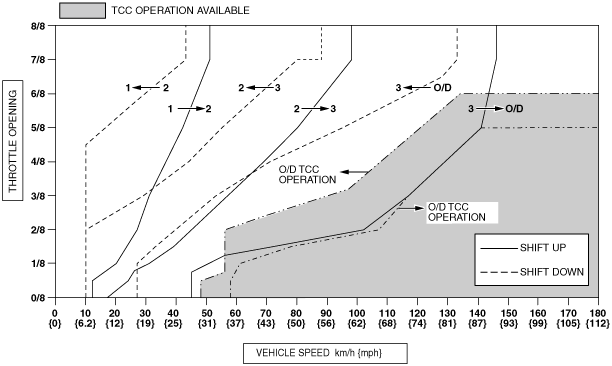

Shift Diagram (Normal Mode at D Range) (except Arab Gulf Cooperation Council specs.)

am2zzw00004218

Shift Diagram (Normal Mode at D Range) (Arab Gulf Cooperation Council specs.)

am2zzw00004217

D Range Test

1.  Perform “Road Test Preparation”. (See Road Test Preparation.)

2.  Warm-up the transaxle until the ATF temperature reaches at 60—70 °C {140—158 °F}.

3.  Select the selector lever to D range.

4.  Perform the road test in D range (Normal).

•  If there is any malfunction, perform the “Symptom Troubleshooting”. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)

(1)  Accelerate the vehicle with half and WOT, then verify that 1GR—2GR, 2GR—3GR, and 3GR—4GR upshifts can be obtained. The shift points must be as shown in the table below.

(2)  Decelerate the vehicle in 4GR, then verify that 4GR—3GR and 3GR—1GR downshifts can be obtained. The shift points must be as shown in the table below.

(3)  Drive the vehicle in 4GR, 3GR, and 2GR and verify that kickdown occurs for 4GR—3GR, 3GR—2GR, 2GR—1GR downshifts, and that the shift points are as shown in the table below.

(4)  Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR, and 4GR.

(5)  Drive the vehicle and verify that TCC operation is obtained. The operation points must be as shown in the table below.

5.  Perform the road test in D range (HOLD).

•  If there is any malfunction, perform the “Symptom Troubleshooting”. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)

(1)  Select HOLD mode.

(2)  Accelerate the vehicle at half throttle and WOT, and verify that 2GR—3GR upshift can be obtained. The shift point must be as shown in the table below.

(3)  Decelerate the vehicle in 3GR, then verify that 3GR—2GR downshift can be obtained. The shift point must be as shown in the table below.

(4)  Drive the vehicle in 3GR and 2GR and verify that kickdown does not occur.

(5)  Decelerate the vehicle in 3GR and verify that engine braking effect is felt.

Shift Point (except Arab Gulf Cooperation Council specs.)

Shift Point (Arab Gulf Cooperation Council specs.)

S Range Test

1.  Perform “Road Test Preparation”. (See Road Test Preparation.)

2.  Warm-up the transaxle until the ATF temperature reaches at 60—70 °C {140—158 °F}.

3.  Select the selector lever to S range.

4.  Perform the road test in S range (Normal).

•  If there is any malfunction, perform the “Symptom Troubleshooting”. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)

(1)  Accelerate the vehicle with half and WOT, then verify that 1GR—2GR and 2GR—3GR upshifts can be obtained. The shift points must be as shown in the table below.

(2)  Decelerate the vehicle in 3GR, then verify that 3GR—1GR downshift can be obtained. The shift point must be as shown in the table below.

(3)  Drive the vehicle in 3GR and 2GR and verify that kickdown occurs for 3GR—2GR and 2GR—1GR downshifts, and that the shift points must be as shown in the table below.

(4)  Decelerate the vehicle and verify that engine braking effect is felt in 2GR and 3GR.

5.  Perform the road test in S range (HOLD).

•  If there is any malfunction, perform the “Symptom Troubleshooting”. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)

(1)  Select HOLD mode.

(2)  Accelerate the vehicle in 2GR at half throttle and WOT, and verify that 2GR is held.

(3)  Drive the vehicle in 2GR and verify that kickdown does not occur.

(4)  Decelerate the vehicle in 2GR and verify that engine braking effect is felt.

Shift point table

Range/Mode		Accelerator pedal depressing amount	Shift	Vehicle speed (km/h {mph})	Turbine speed (rpm)
S	NORMAL	WOT	S1→ S2	50—56 {31—34}	5,500—6,150
			S2→ S3	96—104 {60—64}	5,850—6,300
		Half throttle	S1→ S2	36—45 {23—27}	3,950—4,950
			S2→ S3	72—89 {45—55}	4,350—5,400
		CTP	S4→ S3	143—149 {89—92}	3,900—4,000
			S3→ S2	7—13 {5—8}	300—500
			S2→ S1	7—13 {5—8}	450—750
		Kickdown (WOT)	S3→ S2	84—92 {53—57}	3,300—3,550
			S2→ S1	40—46 {25—28}	2,450—2,750
	HOLD	ALL round	S4→ S3	143—149 {89—92}	3,900—4,000
			S3→ S2	95—101 {59—62}	3,750—3,900

L Range Test

1.  Perform “Road Test Preparation”. (See Road Test Preparation.)

2.  Warm-up the transaxle until the ATF temperature reaches at 60—70 °C {140—158 °F}.

3.  Select the selector lever to L range.

4.  Perform the road test in L range (Normal).

•  If there is any malfunction, perform the “Symptom Troubleshooting”. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)

(1)  Accelerate the vehicle with half and WOT, then verify that 1GR—2GR upshift can be obtained. The shift point must be as shown in the table below.

(2)  Decelerate the vehicle in 2GR, then verify that 2GR—1GR downshift can be obtained. The shift point must be as shown in the table below.

(3)  Drive the vehicle in 2GR and verify that kickdown occurs for 2GR—1GR downshift, and that the shift point must be as shown in the table below.

(4)  Decelerate the vehicle and verify that engine braking effect is felt in 1GR and 2GR.

5.  Perform the road test in L range (HOLD).

•  If there is any malfunction, perform the “Symptom Troubleshooting”. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)

(1)  Select HOLD mode.

(2)  Accelerate the vehicle at half throttle and WOT, and verify that 1GR is held.

(3)  Decelerate the vehicle and verify that engine braking effect is felt.

Shift point table

Range/Mode		Accelerator pedal depressing amount	Shift	Vehicle speed (km/h {mph})	Turbine speed (rpm)
L	NORMAL	WOT	L1→ L2	50—56 {31—34}	5,500—6,150
		Half throttle	L1→ L2	36—45 {23—27}	3,950—4,950
		CTP	L4→ L3	143—149 {89—92}	3,900—4,000
			L3→ L2	95—101 {59—62}	3,750—3,900
			L2→ L1	7—13 {5—8}	450—750
		Kickdown (WOT)	L2→ L1	40—46 {25—28}	2,450—2,750
	HOLD	ALL round	L4→ L3	143—149 {89—92}	3,900—4,000
			L3→ L2	95—101 {59—62}	3,750—3,900
			L2→ L1	40—46 {25—28}	2,450—2,750

P Position Test

1.  Select the selector lever to P position on a gentle slope.

2.  Release the brake and verify that the vehicle does not roll.

•  If the vehicle rolls, inspect the parking mechanism in the transaxle.
