HOLD SWITCH INSPECTION [FN4A-EL]

id051701809000

Caution
•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
•  Do not damage the terminals.

1.  Disconnect the selector lever component connector.

(1)  Disconnect the negative battery cable.
(2)  Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
(3)  Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

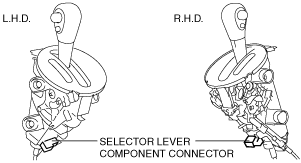

(4)  Disconnect the selector lever component connector.
am2zzw00005007

2.  Verify continuity as indicated in the table.

Type A

am2zzw00004893

Type B

am2zzw00004894
•  If there is any malfunction, replace the selector lever. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

HOLD switch specification

Test condition

Type A

Type B
HOLD switch is released
There is no continuity between terminals C and D.
There is no continuity between terminals A and B.
HOLD switch is depressed
There is continuity between terminals C and D.
There is continuity between terminals A and B.
